K'NEX Carousel Ride

K'NEX Carousel Ride

This K'NEX Carousel Ride spins around when you turn the handle.

View video

It can be built using:

1. A K'NEX Base kit…

K'NEX Carousel 1

2. The K'NEX gears shown in the photo

First, assemble the six 3D connectors shown in the photo opposite.

Please visit Handy Hint A4 if you need help to do this.

Kit Carousel 3

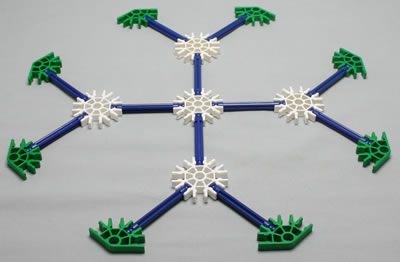

Then, build the base…

Kit Carousel 4

…add six white rods…

Kit Carousel 5

…build the second layer…

Kit Carousel 6

…add onto the base…

Kit Carousel 7

…and add the upper section of the base.

Kit Carousel 8

Now assemble the vertical drive shaft…

Kit Carousel 9

…and add it into the base.

Kit Carousel 10

Next, assemble the horizontal drive shaft…

Kit Carousel 11

..and add that into the base as well, so that the yellow and blue gears mesh.

Kit Carousel 12

Build the centre part of the top section…

Kit Carousel 13

..and assemble 8 "swing rides".

Kit Carousel 14

Now attach the swing rides to the top section…

Kit Carousel 15

..and complete the model by attaching the top section to the base, secure by a purple clip.

Testing

To test your carousel, turn the handle until the carousel is spinning quite quickly, and then release.
